Production Equipment & Process Capability
The equipment below supports heat treatment, CNC machining, stock cutting and straightening. Actual work envelope, accuracy, load and process fit are confirmed against drawings and technical requirements.
Heat treatment equipment
The equipment group supports heating, soaking and cooling routes for common tool steels, mold parts and long workpieces.
Heat treatment equipment
Vacuum Heat Treatment Furnace
Supports heat treatment of tool steels and mold components where oxidation control and surface condition matter.
Typical work
Project confirmation: Part size, batch load, target hardness, distortion control and required process records are confirmed per project.
Heat treatment equipment

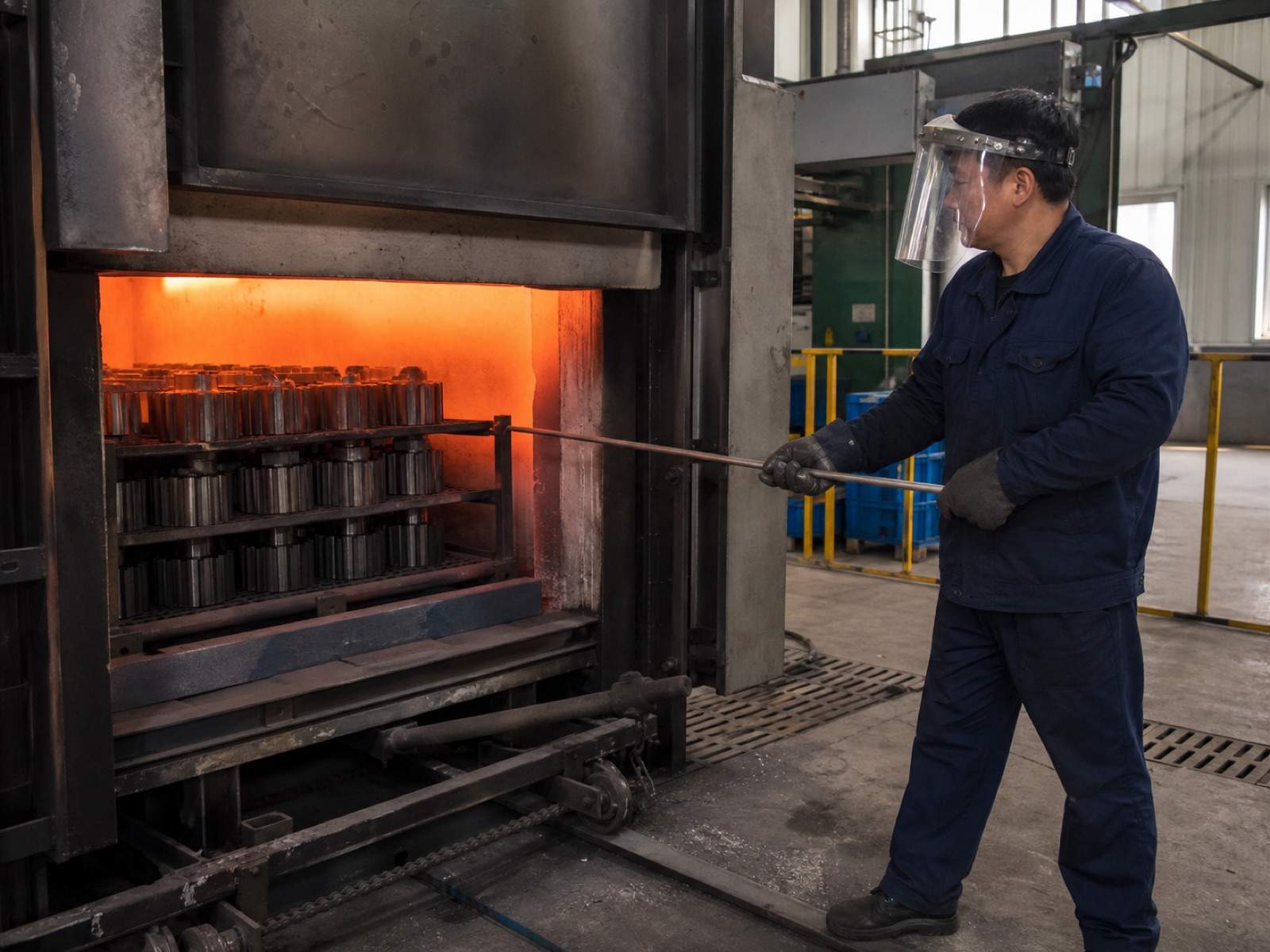

Box-type Heat Treatment Furnace
Supports annealing, normalizing, tempering and stress-relief work for common steel grades.
Typical work
Project confirmation: Applicable temperature, loading method, soak time and cooling route follow the material and drawing requirements.
Heat treatment equipment
Pit-type Heat Treatment Furnace
Suited to long shafts, bars and tubular workpieces that benefit from vertical loading and controlled support.
Typical work
Project confirmation: Length, diameter, lifting method, straightness and any post-treatment correction are confirmed before scheduling.
Heat treatment equipment
Quench Cooling Tank
Works with the furnaces to support quench cooling in water, oil or another agreed medium.
Typical work
Project confirmation: Cooling medium, temperature window, agitation and transfer time are confirmed against the grade and property target.
Machining equipment
Turning, milling, grinding and stock-cutting equipment support the route from material preparation to critical finishing.
Machining equipment
CNC Lathe
Supports turning of shafts, sleeves, rings, threads and other rotational components.
Typical work
Project confirmation: Swing, workholding, tolerances, surface finish and batch size are confirmed from the drawing.
Machining equipment

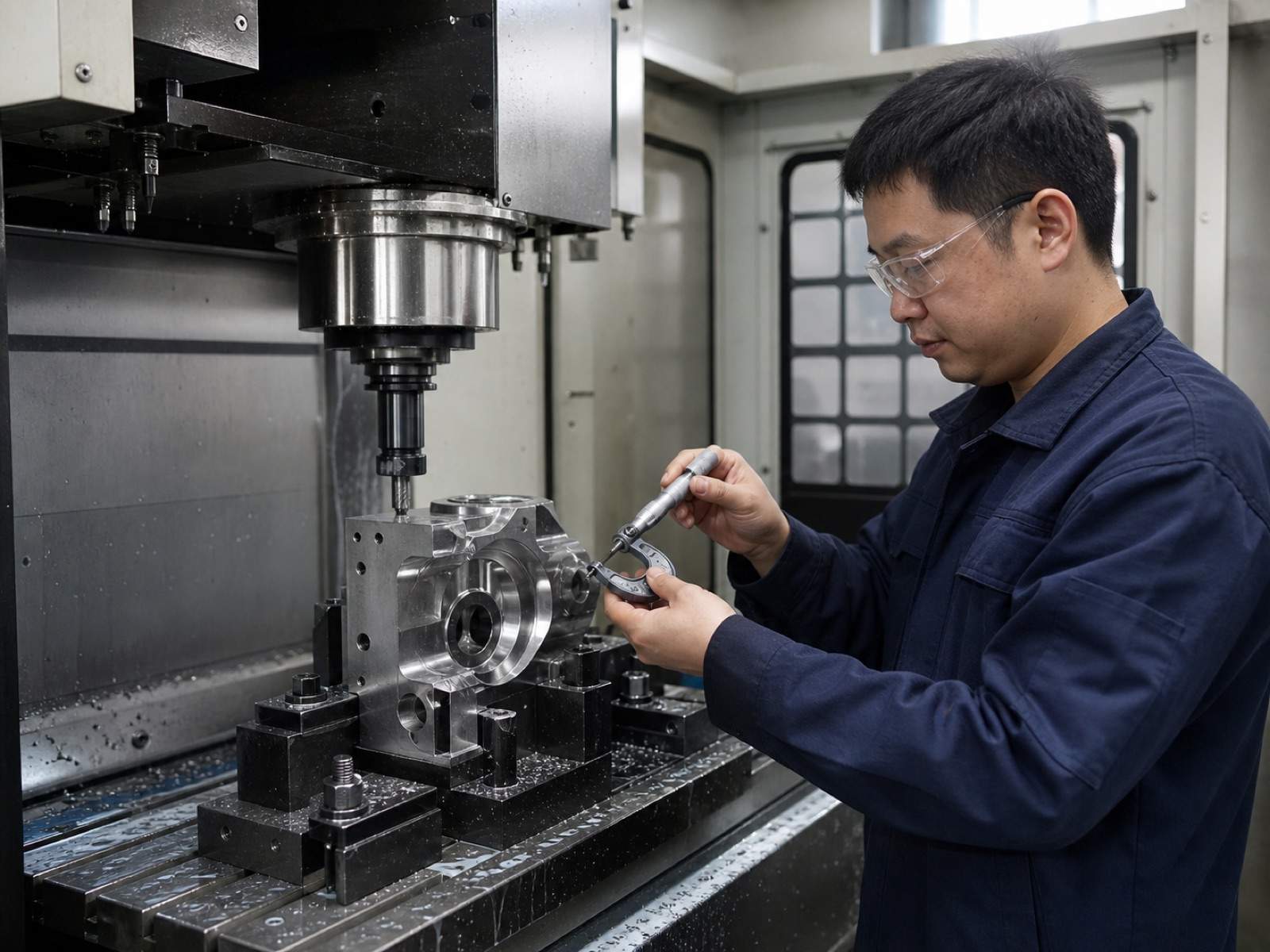

CNC Milling Machine
Supports CNC milling of faces, cavities, hole patterns and common complex profiles.
Typical work
Project confirmation: Work envelope, datums, tool access, positional tolerance and downstream heat treatment are confirmed during process review.
Machining equipment
Precision Grinder
Supports finishing of critical mating surfaces, datums and heat-treated workpieces.
Typical work
Project confirmation: Grinding allowance, hardness, flatness, parallelism and finish are confirmed with the inspection plan.
Machining equipment
Band Saw
Cuts round bar, square stock, tube and profiles with allowance for downstream machining.
Typical work
Project confirmation: Stock section, cut length, quantity, end condition and machining allowance are confirmed before cutting.
Forming and straightening equipment

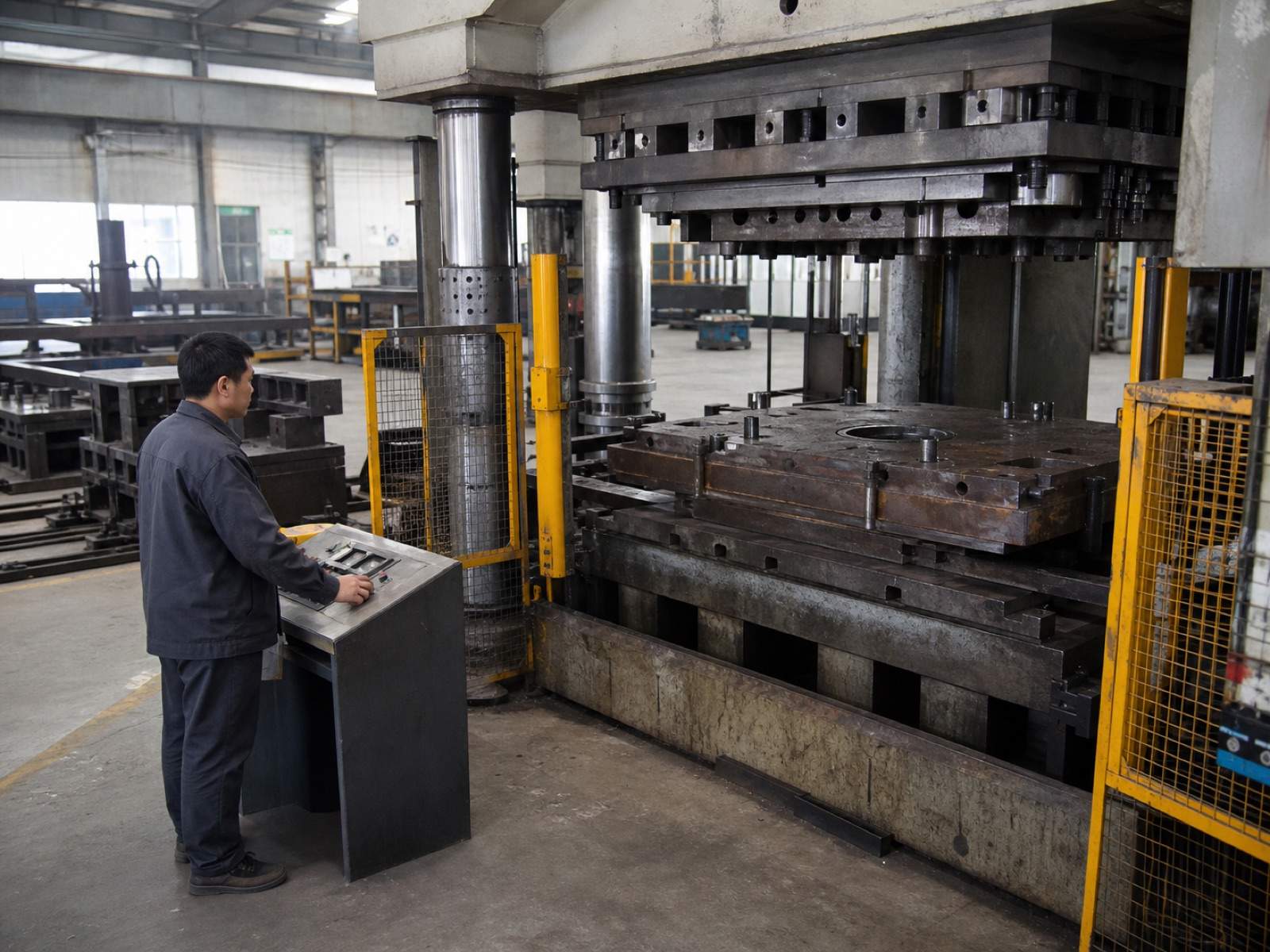

Hydraulic Press
Supports post-treatment straightening, press-fit assembly and forming with project-specific tooling. It is presented as a separate forming capability, not as heat-treatment equipment.
Project confirmation: Force, stroke, load points, tooling, guarding and allowable deformation are confirmed from the drawing and trial plan.
